MODEL 8144NC FEATURES:
- The precise amount of outside air is delivered to the dwelling
- Improves indoor air quality
- Furnace or air handler does not require an ECM motor to meet efficacy requirement
- Designed for use in continuous airflow applications up to 130 CFM
- Can be used with optional controls (sold separately) such as AprilAire Ventilation Control Model 8120X and select AprilAire Thermostats
- Unit is designed, when properly installed, to achieve ASHRAE Standard 62.2
- Complies with IECC (2.8 cfm/watt)
- Integrated powered damper
- Removable, washable MERV 6 filter
- Energy Star Rated Most Efficient
- Designed and Engineered in the USA with US and Imported Parts
BENEFITS:
The Model 8144NC Fresh Air Ventilator is designed to economically bring in precisely the right amount of fresh air into today's efficiently designed homes and apartments. Duct the inlet of the ventilator to an outdoor air intake and the outlet to the return side of the HVAC system or into a mechanical closet, then set the desired flow.
Robust design handles hot attics up to 160°F. When properly installed and controlled, the Model 8144NC will meet the mechanical ventilation requirements of:
- Energy Star Certified Homes Version 3
- EPA Indoor airPLUS Version 1
- 2012/2015 International Residential Code (IRC)
- 2012/2015 International Energy Conservation Code (IECC)
- 2012/2015 International Mechanical Code (IMC)
- California Energy Commission Title 24.

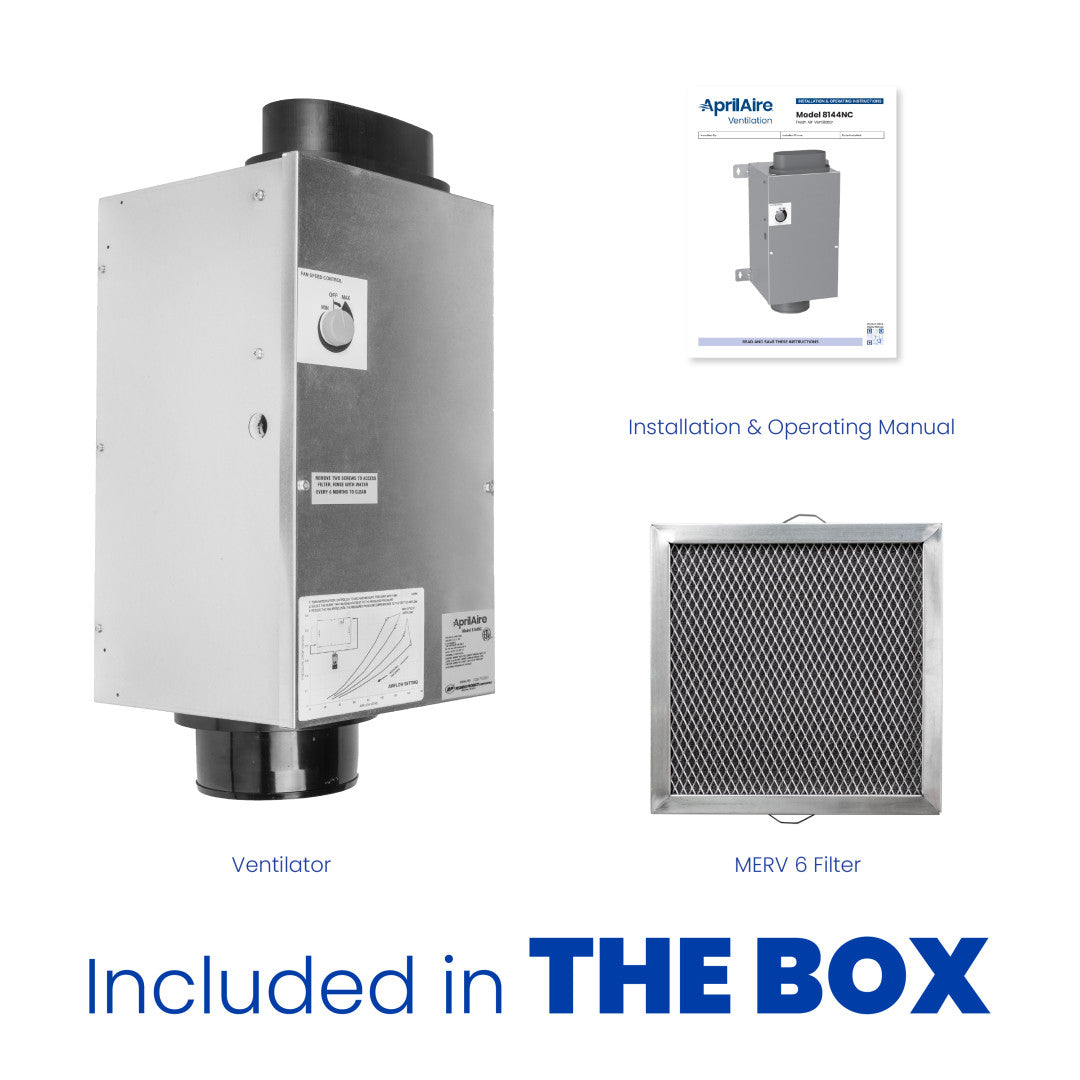

INCLUDED IN THE BOX:
- 8144NC Fresh Air Ventilator
- MERV 6 Washable Filter
- Installation Manual
SPECIFICATIONS:
- MERV Rating: 6
- Materials: Metal - G60 Sheet

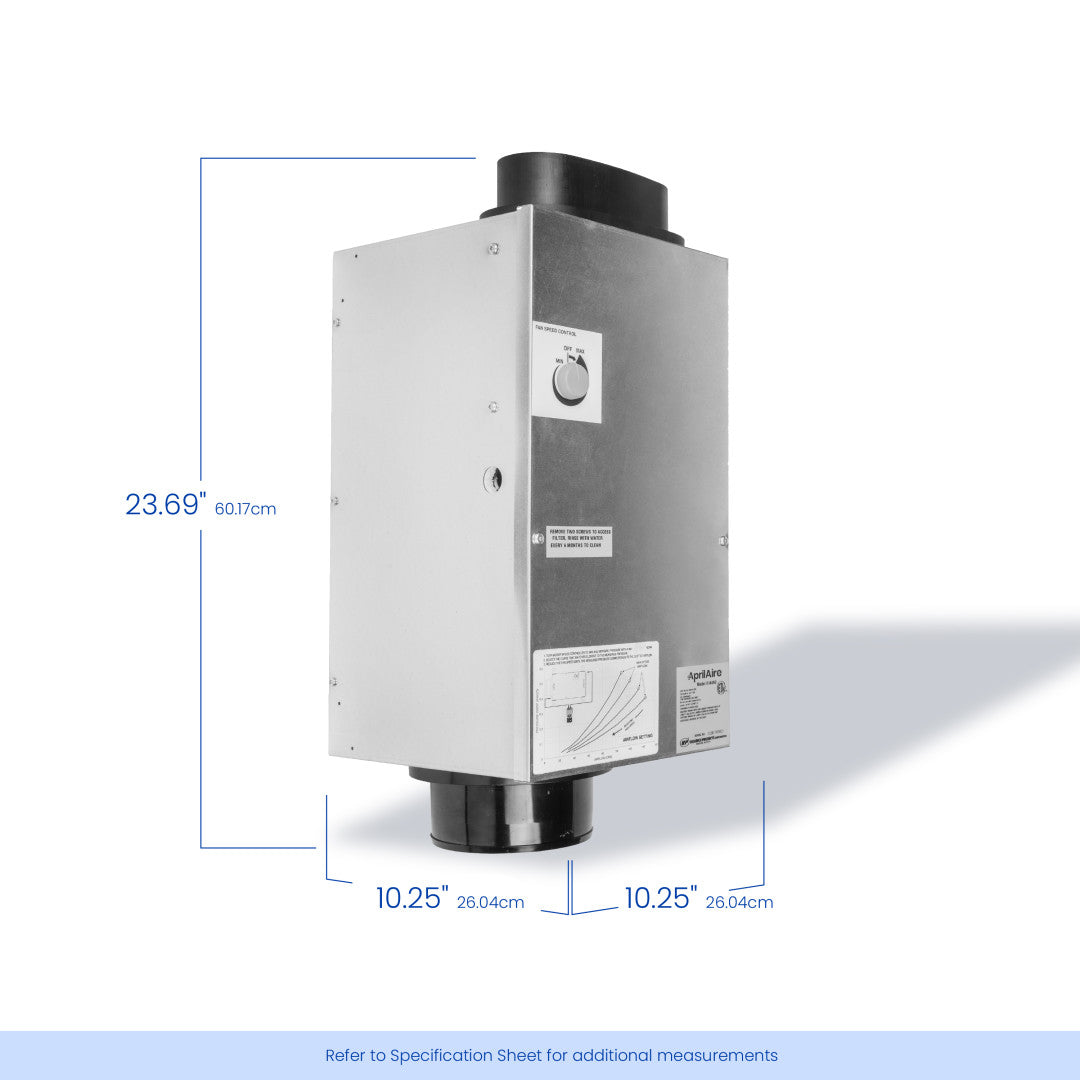

- Actual Measurements: 10.34H x 10.25W x 23.69D (inches)
- Filter Nominal Dimensions (H x W): 8.875x8.875 (inches)
