MODEL 8052 FEATURES:
- Designed for outdoor or duct installation
- Bracket can be removed to allow probe to be installed in radiant flow applications
- Compatible with both residential or light commercial applications
- Probe measures 1/4-inch Diameter x 1.75-inches Long
- Bracket measures 0.75-inches x 0.75-inches
BENEFITS:
The AprilAire Model 8052 temperature sensor can be used with AprilAire thermostats, support modules, zone controls and the Home Comfort Control™.
AprilAire sensors offer the ultimate flexibility in remote sensing of thermostats. The temperature reading from these sensors may be used to monitor a remote temperature or to override the temperature taken at the thermostat.
INCLUDED IN THE BOX:

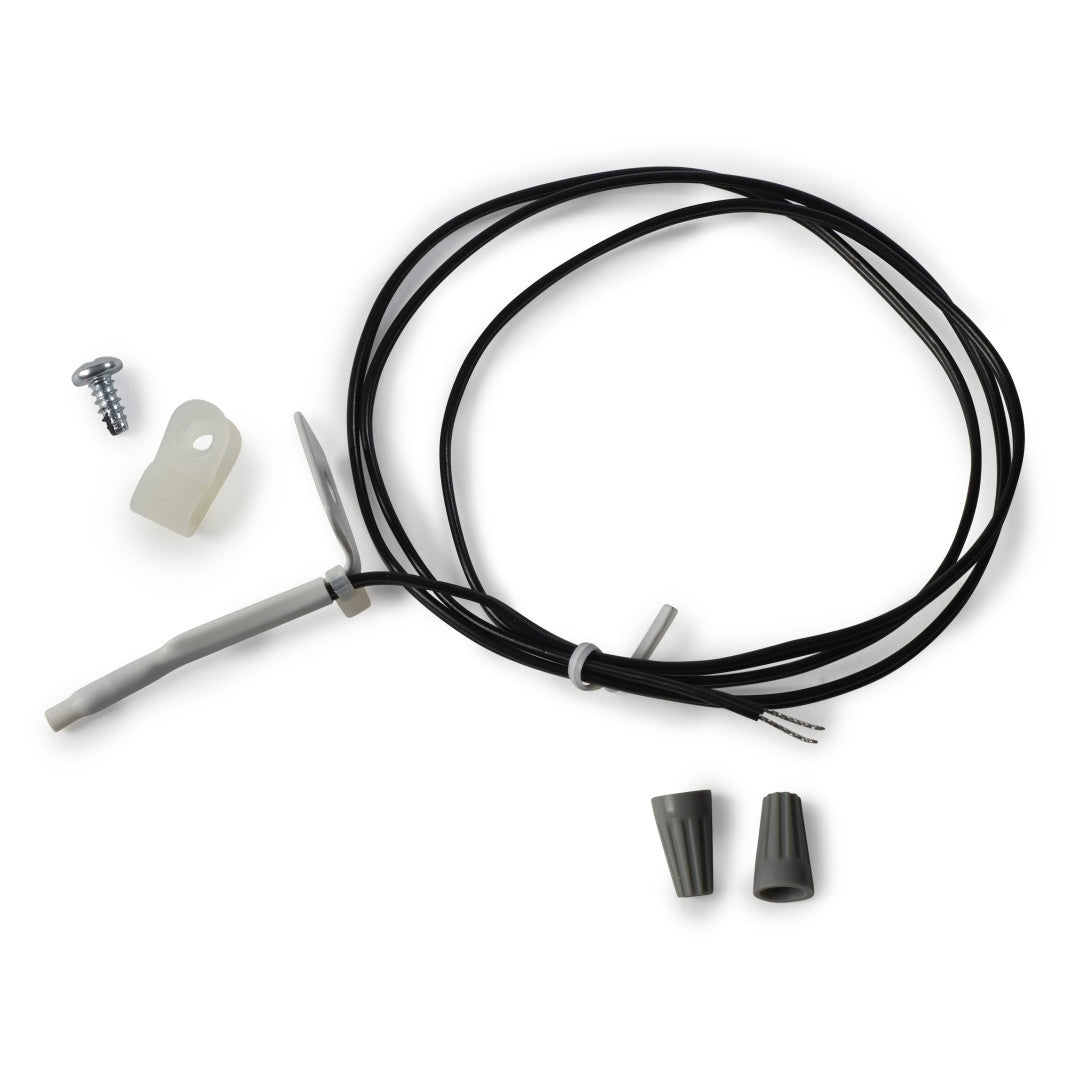

- 8052 Sensor with Bracket and Two Wires
- (1) 3/8-inch Screw
- Cable Clamp
- (2) Wire Nuts
- Installation Manual
SPECIFICATIONS:
- Compatible Models: S86NMU, S86NMUPR, S86WMUPR, 400KZ, 400MKZ, 500KZ, 500MKZ, 60, 600KZ, 600MKZ, 62, 6202, 6203, 6302, 6303, 6403, 6404, 700KZ, 700MKZ, 8126X, 8120X, 8600, 8620, 8620W, 8800, 8810, 8820, 8830, 8840, 8910, 8910W, 8920W
- Materials: Metal, Wire - Rubber Coated, Nylon
- Actual Measurements: 0.71H x 0.87W x 36.65D (inches)
